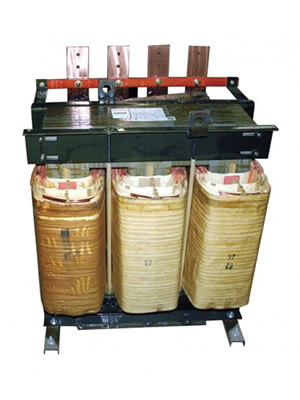

Transformers

In order to keep wiring costs down, many marina design engineers specify higher voltages on long wire runs, requiring transformers to transform that power down to a usable voltage. We offer enclosed transformers designed to withstand harsh coastal environments. Through proper utilization of electrical distribution equipment, the marina designer is able to reduce the overall electrical infrastructure costs while increasing efficiency.


Standard Features

  • Copper Terminations
  • Copper-Wound, Low-Noise Transformer that is Double Insulated and Epoxy Over-Coated
  • All Copper to Copper Connections
  • 316L Stainless Steel Enclosure that is Powder Coated

Available Options

  • Single-Phase: 50 to 500 KVA
  • Three-Phase: 45 to 500 KVA
  • Dual-Phase Option

Primary Voltages

  • 480WYE 3ø
  • 480V 3ø Delta 3-Wire +G
  • 480V 1ø 2-Wire + G

Secondary Voltages

  • 127/220V 3ø Y 4-Wire
  • 120/208V 3ø Y 4-Wire
  • 120/240V 1ø 3-Wire

Marina Power Distribution Transformer KVA Availabilities

  • Single-Phase: 50, 75, 100,150, 167.5, 200, 250, 330,500 KVA
  • Three-Phase: 45, 75, 112.5, 150, 225, 300, 500 KVA
