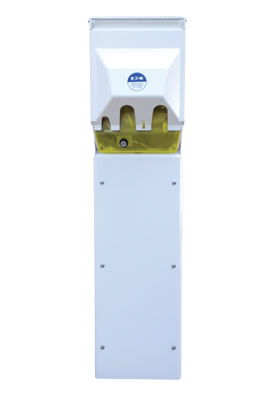

Newport Harbor Mate with Stand Power Pedestal

The Newport Harbor Mate is Eaton Marina Power and Lighting's most compact power pedestal with the ability to host a variety of electrical services. Host to a variety of electrical services, contained in a compact yet strong housing, the Newport Harbor Mate is packed with features.

Dimensions

  in. mm.
Height 42.2 1071.88
Width 10.5 266.7
Depth 10.4 264.16

Standard Features

  • Heavy Resin Housing with a Two-Part Polyurethane Coating for a UV Resistant, Long-Lasting Finis
  • Photocell-Controlled 9 or 14 Watt Compact Fluorescent Twistbulb Light with Amber Lens
  • Copper Bus Bar with a Maximum Rating of 140 Amps
  • NEMA 3R Rating
  • Circuit Breaker Protection for All Receptacles

Available Options

  • Available with Single, Dual, or Combination of 30A or 50A Receptacles
  • 20A/125V GFI Receptacle*
  • Single or Dual Phone, Cable TV, High-Speed Internet Connections
  • Digital Electronic Metering
  • Free Standing Pedestal
  • LED Lighting
  • Clear, Blue, and Red Lenses

* 20 Amp GFI receptacles are not to be used for shore power
