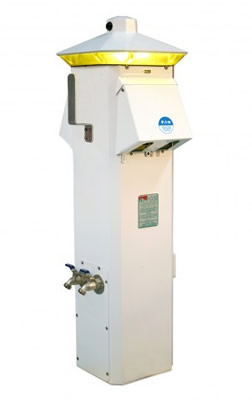

Lighthouse SS Power Pedestal

The Lighthouse SS offers the same standard features and options as the standard Lighthouse. Like all stainless steel marina products manufactured by Eaton, the Lighthouse SS is made of high-quality 316L stainless steel for superior corrosion-resistance.

Dimensions

  in. mm.
Height 44 1117.6
Width 9.565 242.951
Depth 9.875 250.825

Standard Features

  • The Lighthouse-SS offers the same standard features and options as the standard lighthouse. Like all stainless steel marina products manufactured by Eaton, the Lighthouse-SS is made of high-quality 316L stainless steel for superior corrosion-resistance.
  • Photocell-Controlled 14Watt Compact Fluorescent Twistbulb Light with Amber Lens That Provides 360 Degrees of Lighting
  • Available with Lockable Weatherproof Doors
  • Hose and Cable Brackets
  • Heavy 316L Stainless Steel Housing that is Powder Coated with a Polyester Resin
  • Copper Bus Bar with Ratings from 250 to 500 Amps
  • Large Removable Access Panel for Easy Maintenance and Installation
  • Backlit Universal Faceplate for Easy Receptacle Plug-In at Night
  • NEMA 3R Rating
  • Circuit Breaker Protection for All Receptacles

Available Options

  • Digital Electronic Metering
  • 20A/125V GFI Receptacle*
  • High-Speed Internet Connection
  • Wireless Remote Metering Available forWater and Electricity
  • Surge Protection Device (SPD) to Protect from Voltage Surges, Spikes or Lightning on the AC Power Line
  • Single or Dual Phone and/ or Cable TV Connections
  • Single or Dual 3/4” Hose Bibs with Stainless Steel Handles
  • LED Lighting
  • Clear, Blue, and Red Lenses

* 20 Amp GFI receptacles are not to be used for shore power
