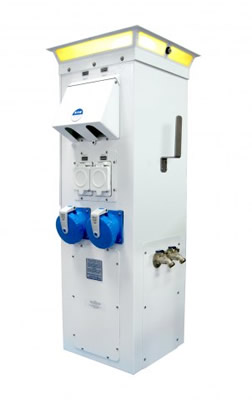

Admiral SS Power Pedestal

The flagship of Eaton Marina Power and Lighting's pedestal line, the Admiral-SS provides amperage capabilities up to 500 Amps and voltages of 480/277 three-phase, 208/120 three-phase, 120/240 single-phase, and combinations of these receptacles in one unit to serve nearly any size vessel.

Dimensions

  in. mm.
Height 50.55 1283.97
Width 14 355.6
Depth 14 355.6

Standard Features

  • Heavy 316L Stainless Steel Housing That Is Powder Coated with a Polyester Resin
  • Photocell Controlled Dual 14Watt Compact Fluorescent Twistbulb Light with Amber Lens That Provides 360 Degrees of Lighting

Available Options

  • Dual Phone and/or Cable TV Connections
  • Four 100A Receptacles of Any Two Voltage Combinations Such As 277/480 Three-Phase, 120/208 Three-Phase, or 120/240 Single-Phase
  • 200A/480V Receptacles
  • When the 100A 120/240V Receptacles Are Used, Two 50 Amp 120/240V Receptacles Can Also Be Provided for a Total of 500 Amps
  • 20A/125V GFI Receptacle*
  • Single or Dual Cat5 High-Speed Internet Connections
  • Single or DualWater 1/4 Turn Ball Valves with 3/4 Hose Bibs and Stainless Steel Handles
  • Digital Electronic Metering
  • Wireless Remote Metering Available for Water and Electricity
  • LED Lighting
  • Clear, Blue, and Red Lenses

* 20 Amp GFI receptacles are not to be used for shore power
